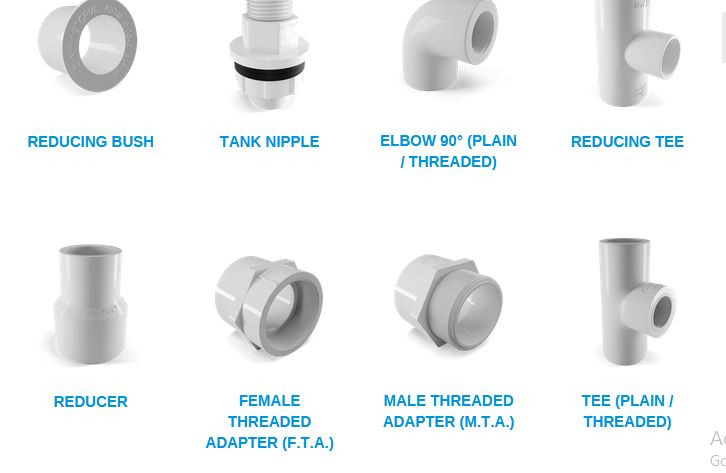

REDUCING BUSH

As Per ASTM D-2467
To reduce the internal diameter of fittings.

Size (mm)	Size (Inch)	H	H1	W	SD1	SD2	Material Code	Standard Pkg.
20 x 15	¾” x ½”	35.00	28.50	3.73	25.40	22.22	4709	700
25 x 15	1” x ½”	43.00	32.00	5.94	29.50	22.22	4710	420
25 x 20	1” x ¾”	43.00	31.50	3.91	28.58	25.40	4711	490
32 x 15	1¼” x 1/2″	52.40	40.00	–	31.50	22.70	4712	96
32 x 20	1¼” x ¾”	52.12	34.13	7.92	31.75	25.42	4713	120
32 x 25	1¼” x 1”	52.50	35.00	4.55	31.75	28.58	4714	240
40 x 15	1½” x ½”	59.00	38.00	5.08	35.50	22.22	4715	100
40 x 20	1½” x ¾”	58.72	37.81	3.91	34.93	25.42	4716	90
40 x 25	1½” x 1”	58.72	37.81	4.85	34.93	28.58	4717	200
40 x 32	1½” x 1¼”	59.00	38.00	4.85	34.93	31.75	4718	200
50×15	2″x½”	72.60	43.00	5.65	38.00	16.00	4719	56
50×20	2″x¾”	72.60	43.00	5.65	38.00	13.80	4720	48
50 x 25	2” x 1”	72.60	43.10	4.85	38.10	28.58	4721	45
50 x 32	2” x 1¼”	72.60	43.10	9.30	38.10	31.75	4722	54
50 x 40	2” x 1½”	73.00	44.00	5.88	38.60	34.93	4723	48
65 x 50	2½” x 2”	87.40	52.45	7.01	44.55	38.10	4724	50
80 x 40	3″ x 1.1/2″	104.90	55.10	–	47.10	35.50	4725	56
80 x 50	3″ x 2″	104.90	55.10	–	47.10	38.60	4726	56
80 x 65	3” x 2½”	105.00	55.65	7.62	47.63	44.45	4727	32
100 x 50	4” x 2″	134.30	66.80	7.30	58.90	38.50	4728	36
100 x 80	4” x 3”	132.00	67.15	8.56	57.15	47.65	4729	16
150 x 100	6” x 4”	191.20	86.70	23.85	76.70	57.60	4730	14

* All dimensions in “MM”

TANK NIPPLE

As Per ASTM D-2467
To connect the pipeline to a tank.

Size (mm)	Size (Inch)	H	L	L1	L3	D	D1	Material Code	Standard Pkg.
15	½”	69.00	32.00	16.50	15.00	41.00	36.00	4628	210
20	¾”	75.00	35.00	16.50	18.00	46.00	41.50	4629	180
25	1”	86.40	39.70	19.50	21.20	56.70	50.00	4630	100
32	1¼”	94.00	44.00	20.00	24.00	65.50	58.80	4631	70
40	1½”	99.00	47.00	20.00	26.00	71.00	66.00	4632	60
50	2”	103.60	49.60	20.00	28.00	83.20	79.20	4633	15
65	2½”	134.00	70.00	25.00	32.00	101.00	96.10	4634	20
80	3”	151.00	80.00	28.00	35.00	118.00	113.00	4635	16
100	4″	162.10	95.00	57.50	–	150.00	164.00	4636	5

* All dimensions in “MM”

ELBOW 90° (PLAIN / THREADED)

As Per ASTM D-2467
ELBOW 90° PLAIN : To give a 90° turn to a pipeline. ELBOW 90° THREADED : To give a 90° turn to a pipeline and to connect male threaded pipes and fittings.

Size (mm)	Size (Inch)	H	W	SD	Material Code (Plain)	Standard Pkg. (Plain)	Material Code (Threaded)	Standard Pkg. (Threaded)
15	½”	50.00	3.73	22.22	4512	350	4523	405
20	¾”	57.00	3.91	25.40	4513	216	4524	105
25	1”	67.50	4.55	28.58	4514	120	4525	60
32	1¼”	80.00	4.85	31.75	4515	72	4526	32
40	1½”	90.00	5.08	34.93	4516	48	4527	24
50	2”	105.70	5.54	38.10	4517	30	4528	14
65	2½”	130.65	7.01	44.45	4518	15	–	–
80	3”	150.90	7.62	47.63	4519	10	–	–
100	4”	187.75	8.56	57.15	4520	6	–	–
150	6″	267.60	22.60	76.70	4521	4	–	–
200	8”	349.80	28.12	102.60	4522	2	–	–

All dimensions in “MM”

REDUCING TEE

As Per ASTM D-2467
To take a reducing bypass or service line from main line.

Size (mm)	Size (Inch)	H	H1	W1	W2	SD1	SD2	Material Code	Standard Pkg.
20 x 15	¾” x ½”	79.38	62.30	3.91	3.73	25.40	22.22	4734	68
25 x 15	1” x ½”	92.10	67.40	4.55	3.73	28.58	22.22	4735	110
25 x 20	1” x ¾”	92.10	67.40	4.55	3.91	28.58	25.40	4736	99
32 x 15	1¼” x ½”	107.95	74.05	4.85	3.73	31.75	22.22	4737	24
32 x 20	1¼” x ¾”	107.95	78.05	4.85	3.91	31.75	25.40	4738	24
32 x 25	1¼” x 1”	107.95	84.05	4.85	4.55	31.75	28.58	4739	24
40 x 15	1½” x ½”	120.65	79.40	5.08	3.73	34.93	22.22	4740	18
40 x 20	1½” x ¾”	120.65	84.40	5.08	3.91	34.93	25.40	4741	18
40 x 25	1½” x 1”	120.65	89.40	5.08	4.55	34.93	28.58	4742	18
40 x 32	1½” x 1¼”	120.65	94.50	5.08	4.85	34.93	31.75	4743	15
50 x 15	2” x ½”	139.70	94.00	5.54	3.73	38.10	22.22	4744	9
50 x 20	2” x ¾”	139.70	96.00	5.54	3.91	38.10	25.40	4745	9
50 x 25	2” x 1”	139.70	101.00	5.54	4.55	38.10	28.58	4746	9
50 x 32	2” x 1¼”	139.70	104.00	5.54	4.85	38.10	31.75	4747	9
50 x 40	2” x 1½”	139.70	108.00	5.54	5.08	38.10	34.93	4748	9
65 x 15	2½” x ½”	173.90	107.70	7.01	3.73	44.45	22.22	4749	14
65 x 20	2½” x ¾”	173.90	108.50	7.01	3.91	44.45	25.40	4750	14
65 x 25	2½” x 1”	173.90	112.30	7.01	4.55	44.45	28.58	4751	14
65 x 32	2½” x 1¼”	173.90	118.70	7.01	4.85	44.45	31.75	4752	14
65 x 40	2½” x 1½”	173.90	119.20	7.01	5.08	44.45	34.93	4753	14
65 x 50	2½” x 2”	173.90	122.80	7.01	5.54	44.45	38.10	4754	14
80 x15	3” x ½”	197.30	124.30	7.62	3.73	47.63	22.22	4755	9
80 x 20	3” x ¾”	197.30	127.30	7.62	3.91	47.63	25.40	4756	9
80 x 25	3” x 1”	197.30	130.30	7.62	4.55	47.63	28.58	4757	9
80 x 32	3” x 1¼”	197.30	134.30	7.62	4.85	47.63	31.75	4758	9
80 x 40	3” x 1½”	197.30	137.30	7.62	5.08	47.63	34.93	4759	9
80 x 50	3” x 2”	197.30	142.30	7.62	5.54	47.63	38.10	4760	9
80 x 65	3” x 2½”	197.30	147.20	7.62	7.01	47.63	44.45	4761	9
100 x 15	4” x ½”	243.60	150.90	8.56	3.73	57.15	22.22	4762	6
100 x 20	4” x ¾”	243.60	153.90	8.56	3.91	57.15	25.40	4763	5
100 x 25	4” x 1”	243.60	157.00	8.56	4.55	57.15	28.58	4764	5
100 x 32	4” x 1¼”	243.60	160.90	8.56	4.85	57.15	31.75	4765	5
100 x 40	4” x 1½”	243.60	163.90	8.56	5.05	57.15	34.93	4766	5
100 x 50	4” x 2”	243.60	166.90	8.56	5.54	57.15	38.10	4767	5
100 x 65	4” x 2½”	243.60	173.40	8.56	7.01	57.15	44.45	4768	5
100 x 80	4” x 3”	243.60	177.20	8.56	7.62	57.15	47.63	4769	4

* All dimensions in “MM”

REDUCER

As Per ASTM D-2467
To reduce the main line.

Size (mm)	Size (Inch)	H	W1	W2	SD1	SD2	Material Code	Standard Pkg.
20 x 15	¾” x ½”	56.50	3.91	3.73	25.40	22.22	4673	320
25 x 15	1” x ½”	65.35	4.55	3.73	28.60	22.22	4674	210
25 x 20	1” x ¾”	64.00	4.55	3.91	28.60	25.40	4675	200
32 x 15	1¼” x ½”	70.30	4.85	3.73	31.75	22.20	4676	80
32 x 20	1¼” x ¾”	73.65	4.85	3.91	31.75	25.40	4677	80
32 x 25	1¼” x 1”	72.00	4.85	4.55	31.75	28.58	4678	60
40 x 15	1½” x ½”	71.15	5.08	3.73	34.95	22.22	4679	60
40 x 20	1½” x ¾”	74.50	5.08	3.91	34.95	25.40	4680	60
40 x 25	1½” x 1”	78.85	5.08	4.55	34.95	28.58	4681	120
40 x 32	1½” x 1¼”	76.00	5.08	4.85	34.93	31.75	4682	40
50 x 15	2” x ½”	65.90	5.54	3.73	38.10	22.22	4683	45
50 x 20	2” x ¾”	69.25	5.54	3.91	38.10	25.40	4684	45
50 x 25	2” x 1”	91.60	5.54	4.55	38.10	28.58	4685	36
50 x 32	2” x 1¼”	90.40	5.54	4.85	38.10	31.75	4686	36
50 x 40	2” x 1½”	90.52	5.54	5.08	38.10	34.93	4687	36
65 x 15	2½” x ½”	72.20	7.01	3.73	44.55	22.20	4688	48
65 x 20	2½” x ¾”	75.60	7.01	3.91	44.55	25.40	4689	48
65 x 25	2½” x 1”	79.10	7.01	4.55	44.55	28.58	4690	48
65 x 32	2½” x 1¼”	104.15	7.01	4.85	44.55	31.75	4691	50
65 x 40	2½” x 1½”	104.30	7.01	5.08	44.55	34.93	4692	40
65 x 50	2½” x 2”	101.45	7.01	5.54	44.55	38.10	4693	36
80 x15	3” x ½”	75.45	7.62	3.73	47.63	22.20	4694	24
80 x 20	3” x ¾”	78.80	7.62	3.91	47.63	25.40	4695	32
80 x 25	3” x 1”	82.60	7.62	4.55	47.63	28.58	4696	32
80 x 32	3” x 1¼”	85.75	7.62	4.85	47.63	31.75	4697	40
80 x 40	3” x 1½”	116.20	7.62	5.08	47.63	34.93	4698	25
80 x 50	3” x 2”	113.35	7.62	5.54	47.63	38.10	4699	20
80 x 65	3” x 2½”	115.75	7.62	7.01	47.63	44.55	4700	25
100 x 15	4” x ½”	82.50	8.56	3.73	57.15	22.20	4701	20
100 x 20	4” x ¾”	88.25	8.56	3.91	57.15	25.40	4702	20
100 x 25	4” x 1”	92.05	8.56	4.55	57.15	28.58	4703	20
100 x 32	4” x 1¼”	95.50	8.56	4.85	57.15	31.75	4704	16
100 x 40	4” x 1½”	98.95	8.56	5.08	57.15	34.93	4705	16
100 x 50	4” x 2”	102.15	8.56	5.54	57.15	38.10	4706	16
100 x 65	4” x 2½”	139.00	8.56	7.01	57.15	44.55	4707	12
100 x 80	4” x 3”	134.25	8.56	7.62	57.15	47.63	4708	14

* All dimensions in “MM”

FEMALE THREADED ADAPTER (F.T.A.)

As Per ASTM D-2467
To connect male threaded fittings to pipeline.

Size (mm)	Size (Inch)	H	W	SD	Material Code	Standard Pkg.
15	½”	41.50	3.73	22.22	4596	490
20	¾”	48.00	3.91	25.40	4597	315
25	1”	54.00	4.55	28.58	4598	210
32	1¼”	59.50	4.85	31.75	4599	128
40	1½”	64.50	5.08	34.93	4600	96
50	2”	69.50	5.54	38.10	4601	24
65	2½”	86.45	7.01	44.45	4602	25
80	3”	93.53	7.62	47.63	4603	20
100	4”	107.15	8.56	57.15	4604	10

* All dimensions in “MM”

MALE THREADED ADAPTER (M.T.A.)

As Per ASTM D-2467
To connect female threaded fittings to pipeline.

Size (mm)	Size (Inch)	H	W	SD	Material Code	Standard Pkg.
15	½”	40.00	3.73	22.22	4579	700
20	¾”	46.00	3.91	25.4	4580	490
25	1”	52.00	4.55	28.58	4581	261
32	1¼”	58.50	4.85	31.75	4582	200
40	1½”	64.00	5.08	34.93	4583	140
50	2”	71.00	5.54	38.1	4584	36
65	2½”	85.85	7.01	44.45	4585	28
80	3”	93.53	7.62	47.63	4586	24
100	4”	108.05	8.56	57.15	4587	15

* All dimensions in “MM”

TEE (PLAIN / THREADED)

As Per ASTM D-2467
TEE -PLAIN : To take a bypass or a service line from a main line.
TEE -THREADED : To take a bypass or a service line from a main line.

Size (mm)	Size (Inch)	H	H1	W	SD	Material Code (Plain)	Standard Pkg. (Plain)	Material Code (Threaded)	Standard Pkg. (Threaded)
15	½”	70.00	50.00	3.73	22.22	4543	256	4557	110
20	¾”	79.50	57.00	3.91	25.40	4544	176	4558	72
25	1”	92.00	67.50	4.55	28.58	4545	84	4559	45
32	1¼”	108.00	80.00	4.85	31.75	4546	56	4560	24
40	1½”	121.00	90.00	5.08	34.93	4547	35	4561	16
50	2”	139.70	105.70	5.54	38.10	4548	24	4562	12
65	2½”	174.00	131.00	7.01	44.45	4549	12	–	–
80	3”	198.00	152.00	7.62	47.63	4550	6	–	–
100	4”	244.00	188.00	8.56	57.15	4551	4	–	–
150	6″	191.20	267.90	22.90	76.70	4552	3	–	–
200	8”	247.20	349.80	28.12	102.60	4553	2	–	–

* All dimensions in “MM”

Download Product Brochure/catalogue
