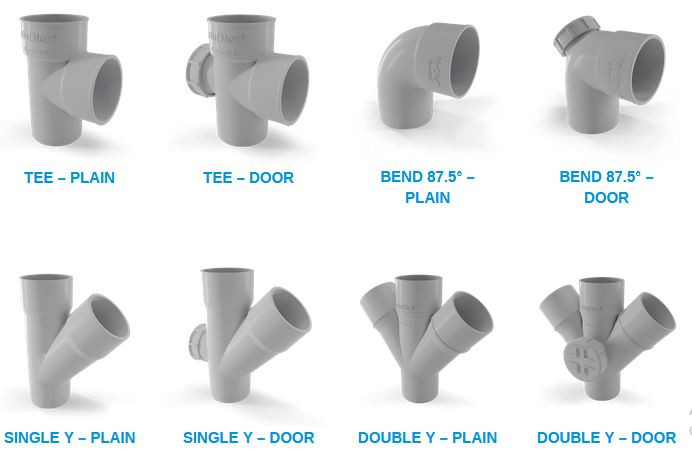

Finolex SWR Selfit Fittings-1
TEE – PLAIN
As Per IS 14735
To connect a lateral soil/waste pipe to the main vertical pipe at an angle of 87.5ᵒ
|
Nominal Dia |
Nominal Dia (Inch) |
L |
a |
b |
e |
Material Code |
Standard Pkg. |
|
50 |
1½” |
90.00 |
26.00 |
26.00 |
3.20 |
7629 |
60 |
|
63 |
2″ |
111.00 |
33.00 |
33.00 |
3.20 |
7630 |
24 |
|
75 |
2½” |
135.00 |
39.00 |
39.00 |
3.20 |
7631 |
24 |
|
90 |
3″ |
179.00 |
47.00 |
47.00 |
3.20 |
7632 |
16 |
|
110 |
4″ |
185.00 |
57.00 |
57.00 |
3.20 |
7633 |
15 |
|
160 |
6″ |
258.00 |
80.00 |
80.00 |
4.00 |
7634 |
10 |
All dimensions in “MM”
TEE – DOOR
As Per IS 14735
To connect a lateral soil/waste pipe to the main vertical pipe at an angle of 87.5ᵒ. Available with a door for cleaning purposes.
|
Nominal Dia |
Nominal Dia (Inch) |
L |
a |
b |
e |
Material Code |
Standard Pkg. |
|
50 |
1½” |
90.00 |
26.00 |
26.00 |
3.20 |
7635 |
50 |
|
63 |
2″ |
111.00 |
33.00 |
33.00 |
3.20 |
7636 |
18 |
|
75 |
2½” |
135.00 |
39.00 |
39.00 |
3.20 |
7637 |
20 |
|
90 |
3″ |
179.00 |
47.00 |
47.00 |
3.20 |
7638 |
15 |
|
110 |
4″ |
185.00 |
57.00 |
57.00 |
3.20 |
7639 |
13 |
|
160 |
6″ |
258.00 |
80.00 |
80.00 |
4.00 |
7640 |
8 |
All dimensions in “MM”
BEND 87.5° – PLAIN
As Per IS 14735
To collect waste water from the internal pipeline and divert the waste water to the main pipeline at an angle of 87.5°.
|
Nominal Dia |
Nominal Dia (Inch) |
b |
W |
H |
e |
Material Code |
Standard Pkg. |
|
50 |
1½” |
25.00 |
92.74 |
91.60 |
3.20 |
7589 |
100 |
|
63 |
2″ |
32.00 |
113.00 |
124.50 |
3.20 |
7590 |
45 |
|
75 |
2½” |
38.00 |
137.00 |
147.00 |
3.20 |
7591 |
36 |
|
90 |
3″ |
53.00 |
174.50 |
177.00 |
3.20 |
7592 |
25 |
|
110 |
4″ |
56.00 |
196.00 |
198.00 |
3.20 |
7593 |
24 |
|
160 |
6″ |
86.00 |
270.00 |
273.00 |
4.00 |
7594 |
8 |
All dimensions in “MM”
BEND 87.5° – DOOR
As Per IS 14735
To collect waste water from the internal pipeline and divert the waste water to the main pipeline at an angle of 87.5°. Available with door for cleaning purpose.
|
Nominal Dia |
Nominal Dia (Inch) |
b |
W |
H |
e |
Material Code |
Standard Pkg. |
|
50 |
1½” |
25.00 |
92.74 |
91.60 |
3.20 |
7595 |
80 |
|
63 |
2″ |
32.00 |
113.00 |
124.50 |
3.20 |
7596 |
35 |
|
75 |
2½” |
38.00 |
137.00 |
147.00 |
3.20 |
7597 |
25 |
|
90 |
3″ |
53.00 |
174.50 |
177.00 |
3.20 |
7598 |
24 |
|
110 |
4″ |
56.00 |
196.00 |
198.00 |
3.20 |
7599 |
18 |
|
160 |
6″ |
86.00 |
270.00 |
273.00 |
4.00 |
7600 |
8 |
All dimensions in “MM”
SINGLE Y – PLAIN
As Per IS 14735
To connect a branch soil/waste pipeline to the main vertical pipeline at an angle of 45ᵒ.
|
Nominal Dia |
Nominal Dia (Inch) |
L |
a |
b |
e |
Material Code |
Standard Pkg. |
|
63 |
2″ |
139.00 |
70.50 |
70.50 |
3.20 |
7663 |
24 |
|
75 |
2½” |
161.00 |
89.00 |
89.00 |
3.20 |
7664 |
17 |
|
90 |
3″ |
203.00 |
106.00 |
106.00 |
3.20 |
7665 |
16 |
|
110 |
4″ |
227.50 |
129.00 |
129.00 |
3.20 |
7666 |
12 |
|
160 |
6″ |
320.00 |
189.00 |
189.00 |
4.00 |
7667 |
8 |
All dimensions in “MM”
SINGLE Y – DOOR
As Per IS 14735
To connect a branch soil/waste pipeline to the main vertical pipeline at an angle of 45ᵒ. Available with a door for cleaning purposes.
|
Nominal Dia |
Nominal Dia (Inch) |
L |
a |
b |
e |
Material Code |
Standard Pkg. |
|
63 |
2″ |
139.00 |
70.50 |
70.50 |
3.20 |
7668 |
18 |
|
75 |
2½” |
161.00 |
89.00 |
89.00 |
3.20 |
7669 |
12 |
|
90 |
3″ |
203.00 |
106.00 |
106.00 |
3.20 |
7670 |
12 |
|
110 |
4″ |
227.50 |
129.00 |
129.00 |
3.20 |
7671 |
10 |
|
160 |
6″ |
320.00 |
189.00 |
189.00 |
4.00 |
7672 |
8 |
All dimensions in “MM”
DOUBLE Y – PLAIN
As Per IS 14735
To connect a branch soil/waste pipeline to the main vertical pipeline at an angle of 45ᵒ
|
Nominal Dia |
Nominal Dia (Inch) |
L |
a |
b |
e |
Material Code |
Standard Pkg. |
|
75 |
2½” |
157.00 |
87.00 |
87.00 |
3.20 |
7675 |
20 |
|
110 |
4″ |
221.50 |
127.00 |
127.00 |
3.20 |
7676 |
6 |
|
160 |
6″ |
322.00 |
191.00 |
191.00 |
4.00 |
7677 |
4 |
All dimensions in “MM”
DOUBLE Y – DOOR
As Per IS 14735
To connect a branch soil/waste pipeline to the main vertical pipeline at an angle of 45ᵒ. Available with a door for cleaning purposes.
|
Nominal Dia |
Nominal Dia (Inch) |
L |
a |
b |
e |
Material Code |
Standard Pkg. |
|
160 |
6″ |
322.00 |
191.00 |
191.00 |
4.00 |
7678 |
4 |
