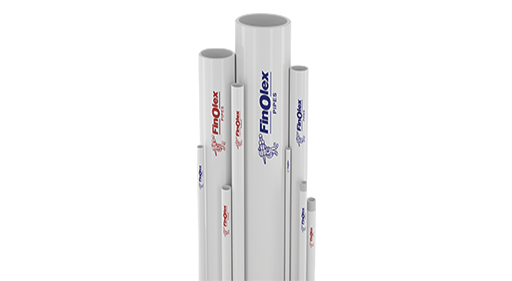

Finolex PVC-U ASTM Pipes SCHD 40 & 80
Finolex ASTM (PVC-U) Plumbing pipes & fittings are used for plumbing & potable water applications. Manufactured with added strength & crafting precision. These pipes are manufactured in accordance with ASTM D 1785 standards and are available in Schedule 40 & 80 series; with a standard length of 3 and 6 meters & an option of plain or threaded ends. Threads are compatible as per IS-554.The maximum service temperature is 60°C. The ASTM Pipes abrasion resistance, light weight, mechanical strength, toughness and durability are the key reasons for it’s usages in construction and building applications. These pipes are recommended for water temperatures up to 45°C. However, occasional rise in temperature up to 60°C does not have any deleterious effect on the life of the product.

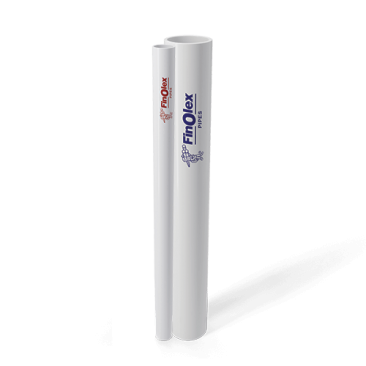

PVC-U ASTM Pipes SCHD 40 & 80
Finolex ASTM (PVC-U) Plumbing pipes & fittings are used for plumbing & potable water applications. Manufactured with added strength & crafting precision. These pipes are manufactured in accordance with ASTM D 1785 standards and are available in Schedule 40 & 80 series; with a standard length of 3 and 6 meters & an option of plain or threaded ends. Threads are compatible as per IS-554.The maximum service temperature is 60°C. The ASTM Pipes abrasion resistance, light weight, mechanical strength, toughness and durability are the key reasons for it’s usages in construction and building applications. These pipes are recommended for water temperatures up to 45°C. However, occasional rise in temperature up to 60°C does not have any deleterious effect on the life of the product.
Dimensions and water pressure rating at 23°C for pipes as per ASTM D-1785 for Pipes with Plain Ends
|
Nominal Size |
Outside diameter “D” in nominal (mm) |
Schedule 40 |
Schedule 80 |
Std. Length (meter) |
|||||||
|
Wall thickness “T” in mm |
Working Pressure |
Material Code |
Wall thickness “T” in mm |
Working Pressure |
Material Code |
||||||
|
Mm |
inch |
kgf/cm 2 |
PSI |
kgf/cm 2 |
psi |
||||||
|
15 |
½” |
21.34 (± 0.10) |
2.77 (+0.51) |
41.40 |
589 |
UP1124 |
3.73 (+0.51) |
58.60 |
833 |
UP1227 |
6 |
|
20 |
¾” |
26.67 (± 0.10) |
2.87 (+0.51) |
33.10 |
470 |
UP1125 |
3.91 (+0.51) |
47.60 |
677 |
UP1228 |
6 |
|
25 |
1″ |
33.40 (± 0.13) |
3.38 (+0.51) |
31.00 |
440 |
UP1126 |
4.55 (+0.53) |
43.40 |
617 |
UP1229 |
6 |
|
30 |
1¼” |
42.16 (± 0.13) |
3.56 (+0.51) |
25.50 |
362 |
UP1127 |
4.85 (+0.58) |
35.90 |
510 |
UP1233 |
6 |
|
40 |
1½” |
48.26 (± 0.15) |
3.68 (+0.51) |
22.80 |
324 |
UP1128 |
5.08 (+0.61) |
32.40 |
460 |
UP1234 |
6 |
|
50 |
2″ |
60.32 (± 0.15) |
3.91 (+0.51) |
19.30 |
274 |
UP1129 |
5.54 (+0.66) |
27.60 |
392 |
UP1235 |
6 |
|
65 |
2½” |
73.02 (± 0.18) |
5.16 (+0.61) |
20.70 |
294 |
UP1133 |
7.01 (+0.84) |
29.00 |
412 |
UP1236 |
6 |
|
80 |
3″ |
88.90 (± 0.20) |
5.49 (+0.66) |
17.90 |
254 |
UP1134 |
7.62 (+0.91) |
25.50 |
362 |
UP1237 |
6 |
|
100 |
4″ |
114.30 (± 0.23) |
6.02 (+0.71) |
15.20 |
216 |
UP1135 |
8.56 (+1.02) |
22.10 |
314 |
UP1238 |
6 |
|
150 |
6″ |
168.28 (± 0.28) |
7.11 (+0.86) |
12.40 |
176 |
UP1136 |
10.97 (+1.32) |
19.30 |
274 |
UP1239 |
6 |
|
200 |
8″ |
219.08 (± 0.38) |
8.18 (+0.99) |
11.00 |
156 |
UP1137 |
12.70 (+1.52) |
17.20 |
244 |
UP1289 |
6 |
|
Nominal Size |
Outside diameter “D” in nominal (mm) |
Schedule 40 |
Schedule 80 |
Std. Length (meter) |
|||||||
|
Wall thickness “T” in mm |
Working Pressure |
Material Code |
Wall thickness “T” in mm |
Working Pressure |
Material Code |
||||||
|
Mm |
inch |
kgf/cm 2 |
PSI |
kgf/cm 2 |
psi |
||||||
|
15 |
½” |
21.34 (± 0.10) |
2.77 (+0.51) |
41.40 |
589 |
UP1111 |
3.73 (+0.51) |
58.60 |
833 |
UP1177 |
3 |
|
20 |
¾” |
26.67 (± 0.10) |
2.87 (+0.51) |
33.10 |
470 |
UP1112 |
3.91 (+0.51) |
47.60 |
677 |
UP1178 |
3 |
|
25 |
1″ |
33.40 (± 0.13) |
3.38 (+0.51) |
31.00 |
440 |
UP1113 |
4.55 (+0.53) |
43.40 |
617 |
UP1179 |
3 |
|
30 |
1¼” |
42.16 (± 0.13) |
3.56 (+0.51) |
25.50 |
362 |
UP1114 |
4.85 (+0.58) |
35.90 |
510 |
UP1188 |
3 |
|
40 |
1½” |
48.26 (± 0.15) |
3.68 (+0.51) |
22.80 |
324 |
UP1115 |
5.08 (+0.61) |
32.40 |
460 |
UP1189 |
3 |
|
50 |
2″ |
60.32 (± 0.15) |
3.91 (+0.51) |
19.30 |
274 |
UP1116 |
5.54 (+0.66) |
27.60 |
392 |
UP1199 |
3 |
|
65 |
2½” |
73.02 (± 0.18) |
5.16 (+0.61) |
20.70 |
294 |
UP1117 |
7.01 (+0.84) |
29.00 |
412 |
UP1222 |
3 |
|
80 |
3″ |
88.90 (± 0.20) |
5.49 (+0.66) |
17.90 |
254 |
UP1118 |
7.62 (+0.91) |
25.50 |
362 |
UP1223 |
3 |
|
100 |
4″ |
114.30 (± 0.23) |
6.02 (+0.71) |
15.20 |
216 |
UP1119 |
8.56 (+1.02) |
22.10 |
314 |
UP1224 |
3 |
|
150 |
6″ |
168.28 (± 0.28) |
7.11 (+0.86) |
12.40 |
176 |
UP1122 |
10.97 (+1.32) |
19.30 |
274 |
UP1225 |
3 |
|
200 |
8″ |
219.08 (± 0.38) |
8.18 (+0.99) |
11.00 |
156 |
UP1123 |
12.70 (+1.52) |
17.20 |
244 |
UP1226 |
3 |
Dimensions and water pressure rating at 23°C for pipes as per ASTM D-1785 for Pipes with Threaded Ends (Threads as per IS:554)
|
Nominal Size |
Outside diameter “D” in nominal (mm) |
Schedule 40 |
Schedule 80 |
Std Length (meter) |
|
|||
|
Wall thickness “T” in mm |
Material Code |
Wall thickness “T” in mm |
Material Code |
|||||
|
Mm |
inch |
|
||||||
|
15 |
½” |
21.34 (± 0.10) |
2.77 (+0.51) |
UP1155 |
3.73 (+0.51) |
UP1258 |
6 |
|
|
20 |
¾” |
26.67 (± 0.10) |
2.87 (+0.51) |
UP1156 |
3.91 (+0.51) |
UP1259 |
6 |
|
|
25 |
1″ |
33.40 (± 0.13) |
3.38 (+0.51) |
UP1157 |
4.55 (+0.53) |
UP1266 |
6 |
|
|
30 |
1¼” |
42.16 (± 0.13) |
3.56 (+0.51) |
UP1158 |
4.85 (+0.58) |
UP1267 |
6 |
|
|
40 |
1½” |
48.26 (± 0.15) |
3.68 (+0.51) |
UP1159 |
5.08 (+0.61) |
UP1268 |
6 |
|
|
50 |
2″ |
60.32 (± 0.15) |
3.91 (+0.51) |
UP1166 |
5.54 (+0.66) |
UP1269 |
6 |
|
|
65 |
2½” |
73.02 (± 0.18) |
5.16 (+0.61) |
UP1167 |
7.01 (+0.84) |
UP1277 |
6 |
|
|
80 |
3″ |
88.90 (± 0.20) |
5.49 (+0.66) |
UP1168 |
7.62 (+0.91) |
UP1278 |
6 |
|
|
100 |
4″ |
114.30 (±0.23) |
6.02 (+0.71) |
UP1169 |
8.56 (+1.02) |
UP1279 |
6 |
|
|
Nominal Size |
Outside diameter “D” in nominal (mm) |
Schedule 40 |
Schedule 80 |
Std Length (meter) |
|
|||
|
Wall thickness “T” in mm |
Material Code |
Wall thickness “T” in mm |
Material Code |
|||||
|
Mm |
inch |
|
||||||
|
15 |
½” |
21.34 (± 0.10) |
2.77 (+0.51) |
UP1138 |
3.73 (+0.51) |
UP1244 |
3 |
|
|
20 |
¾” |
26.67 (± 0.10) |
2.87 (+0.51) |
UP1139 |
3.91 (+0.51) |
UP1245 |
3 |
|
|
25 |
1″ |
33.40 (± 0.13) |
3.38 (+0.51) |
UP1144 |
4.55 (+0.53) |
UP1246 |
3 |
|
|
30 |
1¼” |
42.16 (± 0.13) |
3.56 (+0.51) |
UP1145 |
4.85 (+0.58) |
UP1247 |
3 |
|
|
40 |
1½” |
48.26 (± 0.15) |
3.68 (+0.51) |
UP1146 |
5.08 (+0.61) |
UP1248 |
3 |
|
|
50 |
2″ |
60.32 (± 0.15) |
3.91 (+0.51) |
UP1147 |
5.54 (+0.66) |
UP1249 |
3 |
|
|
65 |
2½” |
73.02 (± 0.18) |
5.16 (+0.61) |
UP1288 |
7.01 (+0.84) |
UP1255 |
3 |
|
|
80 |
3″ |
88.90 (± 0.20) |
5.49 (+0.66) |
UP1148 |
7.62 (+0.91) |
UP1256 |
3 |
|
|
100 |
4″ |
114.30 (±0.23) |
6.02 (+0.71) |
UP1149 |
8.56 (+1.02) |
UP1257 |
3 |
|
