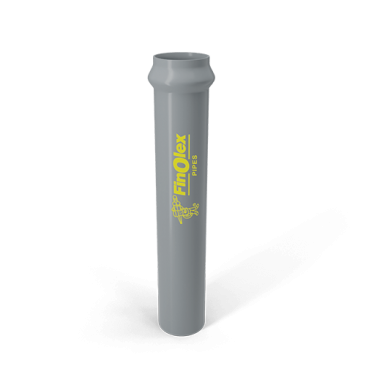

Finolex PVC-U Ringfit Agriculture Pipes & Fittings
Conforming to IS 4985
This unique range of PVC-U pipes introduced by Finolex for the first me in India are specially designed for higher diameter requirements and eliminate the need for solvent cement. The sealing ring ensures 100% leak-proof joints and easy installaon. The entire range comprises sizes from 63 mm to 400 mm diameter; in 2.5,4,6,8 and 10,12.5 kgf/cm2 working pressure classes.
DIMENSIONS OF RINGFIT PVC-U PIPE CONFORMING TO: IS 4985
|
Nominal Outside Diameter “D” |
Mean Outside Diameter (mm) |
Wall Thickness (mm) |
Material Code |
Std. |
||||||||||||||||||
|
Class I 0.25 Mpa |
Class II 0.40 Mpa |
Class III 0.60 Mpa |
Class IV 0.80 Mpa |
Class V 1.00 Mpa |
Class VI 1.25 Mpa |
Class I 0.25 Mpa |
Class II 0.40 Mpa |
Class III 0.60 Mpa |
Class IV 0.80 Mpa |
Class V 1.00 Mpa |
Class VI 1.25 Mpa |
|||||||||||
|
mm |
inch |
min |
max |
min |
max |
min |
max |
min |
max |
min |
max |
min |
max |
min |
max |
meter |
||||||
|
63 |
2″ |
63.0 |
63.3 |
– |
– |
1.5 |
1.9 |
2.2 |
2.7 |
2.8 |
3.3 |
3.5 |
4.1 |
4.3 |
5.0 |
– |
AR1111 |
AR1112 |
AR1235 |
AR1199 |
AR1249 |
6 |
|
75 |
2.1/2″ |
75.0 |
75.3 |
– |
– |
– |
– |
2.6 |
3.1 |
– |
– |
– |
– |
– |
– |
– |
– |
AR1113 |
– |
– |
– |
3 |
|
75 |
2.1/2″ |
75.0 |
75.3 |
– |
– |
1.8 |
2.2 |
2.6 |
3.1 |
3.4 |
4.0 |
4.2 |
4.9 |
5.1 |
5.9 |
– |
AR1223 |
AR1114 |
AR1236 |
AR1222 |
AR1255 |
6 |
|
90 |
3″ |
90.0 |
90.3 |
– |
– |
2.1 |
2.6 |
3.1 |
3.7 |
4.0 |
4.6 |
5.0 |
5.7 |
6.1 |
7.1 |
– |
AR1115 |
AR1116 |
AR1237 |
AR1117 |
AR1256 |
6 |
|
110 |
4″ |
110.0 |
110.4 |
– |
– |
– |
– |
3.7 |
4.3 |
– |
– |
– |
– |
– |
– |
– |
– |
AR1118 |
– |
– |
– |
3 |
|
110 |
4″ |
110.0 |
110.4 |
– |
– |
2.5 |
3.0 |
3.7 |
4.3 |
4.9 |
5.6 |
6.1 |
7.1 |
7.5 |
8.7 |
– |
AR1119 |
AR1122 |
AR1123 |
AR1124 |
AR1257 |
6 |
|
125 |
4.1/2″ |
125.0 |
125.4 |
– |
– |
2.9 |
3.4 |
4.3 |
5.0 |
5.6 |
6.4 |
6.9 |
8.0 |
8.5 |
9.8 |
– |
AR1234 |
AR1125 |
AR1238 |
AR1247 |
AR1258 |
6 |
|
140 |
5″ |
140.0 |
140.5 |
– |
– |
3.2 |
3.8 |
4.8 |
5.5 |
6.3 |
7.3 |
7.7 |
8.9 |
9.5 |
11.0 |
– |
AR1126 |
AR1127 |
AR1278 |
AR1128 |
AR1259 |
6 |
|
160 |
6″ |
160.0 |
160.5 |
– |
– |
3.7 |
4.3 |
5.4 |
6.2 |
7.2 |
8.3 |
8.8 |
10.2 |
10.9 |
12.6 |
– |
AR1129 |
AR1133 |
AR1189 |
AR1134 |
AR1135 |
6 |
|
180 |
7″ |
180.0 |
180.6 |
2.6 |
3.1 |
4.2 |
4.9 |
6.1 |
7.1 |
8.0 |
9.2 |
9.9 |
11.4 |
– |
– |
AR1224 |
AR1136 |
AR1137 |
AR1239 |
AR1248 |
– |
6 |
|
200 |
8″ |
200.0 |
200.6 |
2.9 |
3.4 |
4.6 |
5.3 |
6.8 |
7.9 |
8.9 |
10.3 |
11.0 |
12.7 |
– |
– |
AR1225 |
AR1138 |
AR1139 |
AR1144 |
AR1145 |
– |
6 |
|
225 |
9″ |
225.0 |
225.7 |
3.3 |
3.9 |
5.2 |
6.0 |
7.6 |
8.8 |
10.0 |
11.3 |
12.4 |
14.3 |
– |
– |
AR1226 |
AR1146 |
AR1147 |
AR1244 |
AR1148 |
– |
6 |
|
250 |
10″ |
250.0 |
250.8 |
3.6 |
4.2 |
5.7 |
6.5 |
8.5 |
9.8 |
11.2 |
12.9 |
13.8 |
15.9 |
– |
– |
AR1227 |
AR1149 |
AR1155 |
AR1245 |
AR1156 |
– |
6 |
|
280 |
11″ |
280.0 |
280.9 |
4.1 |
4.8 |
6.4 |
7.4 |
9.5 |
11.0 |
12.5 |
14.4 |
15.4 |
17.8 |
– |
– |
AR1228 |
AR1157 |
AR1158 |
AR1246 |
AR1159 |
– |
6 |
|
315 |
12″ |
315.0 |
316.0 |
4.6 |
5.3 |
7.2 |
8.3 |
10.7 |
12.4 |
14.0 |
16.1 |
17.3 |
19.9 |
– |
– |
AR1229 |
AR1166 |
AR1167 |
AR1168 |
AR1169 |
– |
6 |
|
355 |
14″ |
355.0 |
356.1 |
5.1 |
5.9 |
8.1 |
9.4 |
12.0 |
13.8 |
15.8 |
18.2 |
19.6 |
22.6 |
– |
– |
AR1233 |
AR1266 |
AR1177 |
AR1267 |
AR1269 |
– |
6 |
|
400 |
16″ |
400.0 |
401.2 |
5.8 |
6.7 |
9.1 |
10.5 |
13.5 |
15.6 |
17.8 |
20.5 |
22.0 |
25.3 |
– |
– |
AR1178 |
AR1179 |
AR1188 |
AR1268 |
AR1277 |
– |
6 |
